Times Microwave - 3/8" LMR400 Plenum Cable - LMR-400-LLPX

Times Microwave

Times Microwave - 3/8" LMR400 Plenum Cable - LMR-400-LLPX

$ 8.51

Times Microwave - 3/8" LMR400 Plenum Cable - LMR-400-LLPX

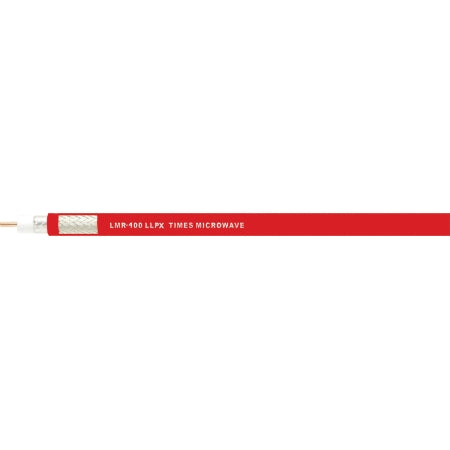

The Times Microwave LMR-400-LLPX plenum-rated low loss coaxial cable with Red CATV-P rated jacket is an indoor, fire-retardant cable specifically designed for use in return air handling plenums. This 50 Ohm coax cable has a stranded outer conductor and bare copper center conductor. A 100 percent coverage foil, and 90 percent coverage braided shield prevents loss. It has a UL/NEC & CSA rating of 'CMP' and 'FT6' respectively.

The braided coaxial cable offers similar performance compared to corrugated copper cables but provides higher flexibility (1.25 inch bending radius) and simplified connectorization.

The Times LMR-400 plenum-rated coax cable is available in bulk and is priced per foot. The new LLPX has an extended temp range (-40C to 125C), higher power handling, advanced chemical and UV resistance, and compliance of a red jacket for public safety and in-building applications.

Cable cannot be canceled or returned once cut to length**

  • Loss @ 900 MHz
    4.2 dB
  • Shield %
    100% foil 90% braid
  • Loss @ 1000 MHz
    4.39
  • VOP
    76 %
  • Cable Type
    LMR-400-LLPX
  • Sold By
    per ft.
  • Center Conductor Diameter
    .100 in
  • Other Spec
    Red Jacket
  • Nominal O.D.
    0.405 in
  • Loss @ 100 MHz
    1.35 dB
  • Center Conductor Construction
    Solid
  • Loss @ 400 MHz
    2.74 dB
  • Manufacturer
    Times Microwave Systems
  • Dielectric Insulation
    PTFE
  • Nominal Capacitance (pF/ft)
    27.0
  • Nominal Core O.D.
    0.285"
  • Loss @ 50 MHz
    1.00
  • Center Conductor Material
    Copper Clad Aluminum
