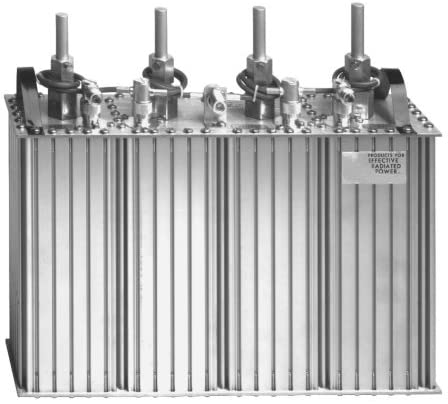

Sinclair - 139-165 MHz Pass Reject Duplexer - Q-2222E-1

SINCLAIR 139-165 MHz Duplexer. Pass- reject type. 4 cavity. 120 W. 3 MHz min separation. 0.8 dB loss. 80dB isolation. N/F

***Please specify transmit and receive frequencies for tuning***

***The item may not be canceled or returned once ordered***

Technical Specs

• Item Height
  4.17 in
• Minimum Isolation
  80 dB
• RF Connector
  N Female
• Minimum Separation
  3 MHz
• Maximum VSWR
  1.5:1
• Maximum Power Input
  120 W
• Item Width
  19 in
• Item Length
  17 in
• Insertion Loss (Rx/Ant-dB)
  0.8
• Number of Cavities
  4
• Frequency Range
  144-165 MHz
• Insertion Loss (Tx/Ant-dB)
  0.8
