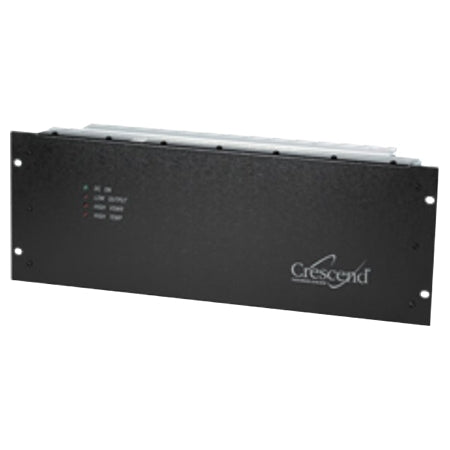

CRESCEND - Amp, 136-174 MHz, 100 W out - P10 Series VHF

CRESCEND - Amp, 136-174 MHz, 100 W out

136-174 MHz 100 Watts Output Power

Amps are special order items - non-cancelable and non-returnable once ordered***

Frequency Range:

136-174 MHz (DE)
Operating Voltage: 13.8 VDC
Current Draw: 23 Amperes (Max)
Duty Cycle: 100%
Power Input: See Options
Power Output: 100 Watts, set at factory
Spurious & Harmonics: Meets FCC Requirements
Input/Output Impedance: 50 ohms (Nominal)
Load VSWR Tolerance: VSWR Protected
Indicator LEDs: DC On, Low Output, High VSWR, High Temp
Alarm: Summary Alarm Pin
Input/Output Connector: Type 'N' Female
Cooling Method: Fan Forced Air Over Heat Sink
Operating Temp. Range: -300 C to +600
C
Storage & Transport: -400 C to +700
C
Humidity: 80% at +400
C (non-condensing)
Altitude: 10,000 feet maximum
SIZE
Vertical Mounting: 7"
Horizontal Mounting: 19.0"
Depth: 6.0"
Weight:
10 pounds nominal

Model                          Required Power
P10-R1DE1-C5-001     100-200 mW
P10-R2DE1-C5-001     200-500 mW
P10-R5DE1-C5-001     500 mW-1 W
P10-1DE1-C5-001       1-2 W
P10-2DE1-C5-001       2-5 W
P10-5DE1-C5-001       5-10 W
P10-10DE1-C5-001     10-20 W
P10-20DE1-C5-001     20-50 W
